Description

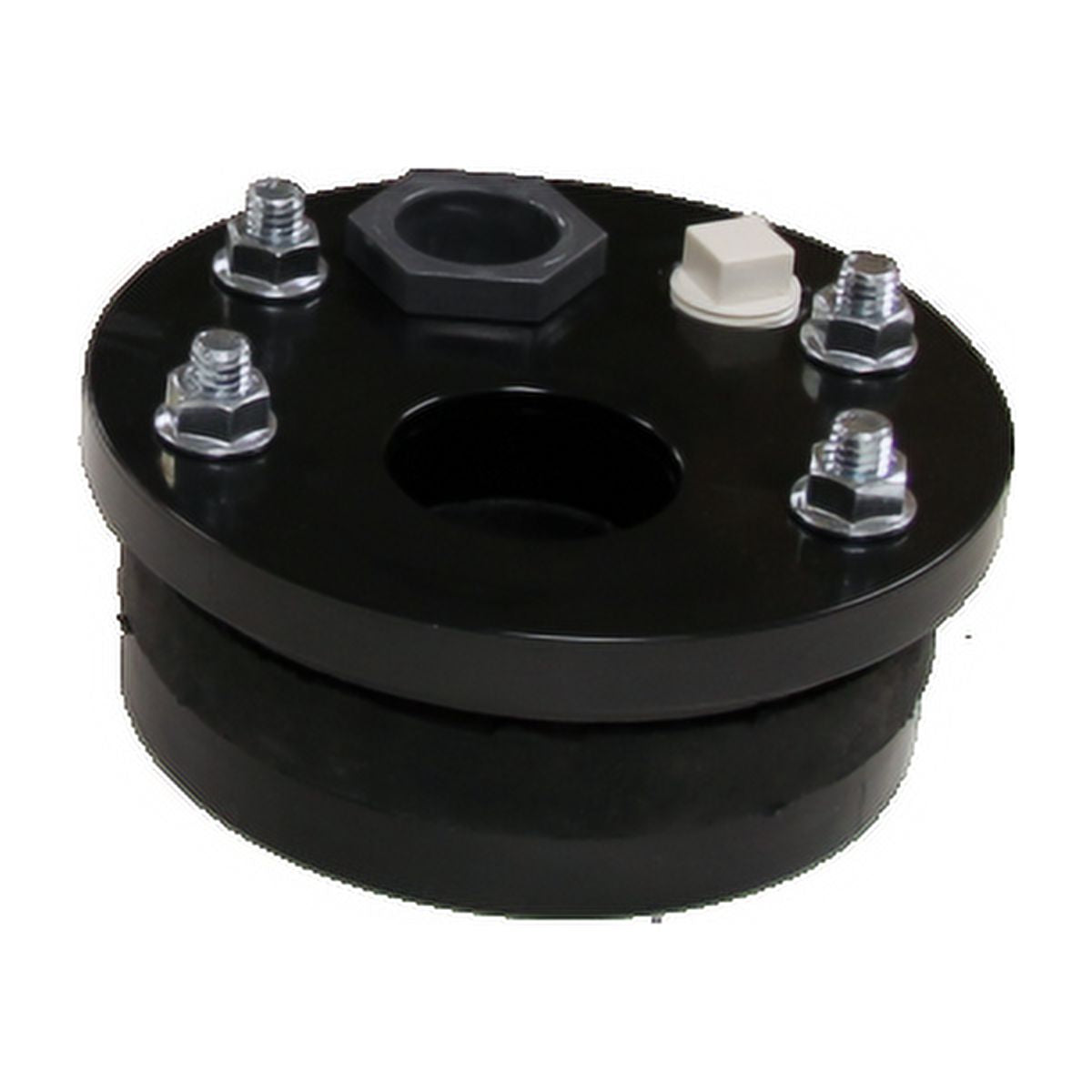

The ABS Single Hole Submersible Well Seal with Cable Seal is an essential component designed to prevent surface water from entering the well while providing a secure, leak-proof seal for submersible pump installations.
Key Features:
- High-Quality ABS Construction — Durable Acrylonitrile Butadiene Styrene material provides long-lasting resistance to environmental conditions and chemical exposure
- Prevents Surface Contamination — Creates a secure seal at the wellhead to prevent surface water, debris, and contaminants from entering the well
- Single Hole Design — Accommodates drop pipe while maintaining a tight and effective seal
- Universal Compatibility — Available in six size combinations to fit 4", 5", and 6" well casings with 1" or 1-1/4" drop pipe
- Waterproof Construction — Engineered to provide reliable, leak-proof performance in all weather conditions
- Easy Installation — Compact design simplifies installation on new or existing well systems
- Multi-Application Use — Ideal for residential, commercial, and agricultural well applications
The well seal's robust ABS construction ensures reliable performance across a wide range of applications, from residential water wells to commercial and agricultural systems. Its waterproof design and secure sealing capabilities maintain the integrity of your well system by preventing contamination while accommodating the necessary pump cables and drop pipe connections.
Constructed from high-quality ABS material for enhanced durability and resistance to environmental conditions, this well seal features a single hole configuration to accommodate drop pipe and includes a built-in cable seal for easy and secure cable management.
Available in multiple size combinations to fit 4", 5", and 6" well casings with various drop pipe diameters, ensuring proper fit for your specific well system requirements.
Available Sizes (Well Casing × Drop Pipe):
| Size | Well Casing | Drop Pipe | Model Number |
|---|---|---|---|
| 6" × 1-1/4" | 6" | 1-1/4" | WSP6012 |
| 6" × 1" | 6" | 1" | WSP6010 |
| 5" × 1-1/4" | 5" | 1-1/4" | WSP5012 |
| 5" × 1" | 5" | 1" | WSP5010 |
| 4" × 1-1/4" | 4" | 1-1/4" | WSP4012 |
| 4" × 1" | 4" | 1" | WSP4010 |
Technical Specifications:
| Specification | Details |
|---|---|
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| Configuration | Single Hole |
| Cable Seal | Built-in / Integrated |
| Water Resistance | Waterproof |
| Compatible Materials | Metal, Concrete, Plastic |
| Well Casing Sizes | 4", 5", 6" |
| Drop Pipe Sizes | 1", 1-1/4" |
| Weight | Approximately 5 lbs |
| Style | Compact |
| Primary Function | Prevents surface water from entering well, provides secure seal for submersible pumps |
| Typical Applications | Residential wells, commercial water systems, agricultural irrigation wells, submersible pump installations |
Note: Select the appropriate size based on your well casing diameter (first number) and drop pipe diameter (second number). The well casing size refers to the diameter of your well, while the drop pipe size refers to the diameter of the pipe connected to your submersible pump.
