PANEL BRAND AND MODEL SUBJECT TO CHANGE. PANEL QUANTITY MAY BE ADJUSTED DEPENDING ON WATTAGE.
Introducing our comprehensive Solar Power Kit, meticulously designed to provide efficient and reliable renewable energy solutions for your home or business. This all-in-one package includes top-tier components:
- 8x - Hyundai 405W Black on Black 132 Half-Cell Bifacial Mono Solar Panels (or comparable)
- EG4 6000XP Off-Grid Inverter
- EG4 LiFePower4 5.12kWh Lithium Iron Phosphate Batteries with battery cabinet.
Key Features:
- High-Efficiency Solar Panels: The Hyundai HiS-S405YH(BK) panels utilize 132 half-cut bifacial cells, enhancing energy capture from both front and rear surfaces, leading to increased power generation (or comparable).
- Advanced Off-Grid Inverter: The EG4 6000XP inverter offers robust performance with a 6,000W continuous output, ensuring seamless energy conversion and management for off-grid applications.
- Long-Life Lithium Batteries: Each EG4 LiFePower4 battery provides 5.12kWh of storage with over 6,000 cycles at 80% depth of discharge, ensuring a reliable and long-lasting energy reserve.
- Scalable Energy Storage: The system supports parallel connections of up to 64 batteries, allowing for flexible expansion to meet increasing energy demands.
- Comprehensive Safety Features: Equipped with an internal Battery Management System (BMS), emergency stop functionality, and dual fire arrestors, ensuring safe and stable operation.
Product Overview
Transitioning to renewable energy is a significant step toward sustainability and energy independence. Our Solar Power Kit combines cutting-edge technology and reliable components to deliver a seamless and efficient solar energy solution.
Hyundai HiS-S405YH(BK) 405W Solar Panel
Hyundai Energy Solutions has engineered the HiS-S405YH(BK) solar panel to maximize efficiency and aesthetic appeal. Featuring 132 half-cut bifacial monocrystalline cells, this panel captures sunlight from both sides, increasing energy production. The black-on-black design ensures a sleek appearance, blending seamlessly with various architectural styles. With a module efficiency of up to 20.5%, these panels are designed to deliver optimal performance even in limited space. The robust construction, including a 3.2mm high-transmission, AR-coated tempered glass front and anodized aluminum alloy frame, ensures durability against environmental factors.
EG4 6000XP Off-Grid Inverter
The EG4 6000XP inverter is a versatile and powerful component, ideal for off-grid applications. With a continuous output of 6,000W, it efficiently converts DC power from solar panels and batteries into AC power for household or commercial use. The inverter supports various input sources, including solar panels, batteries, and generators, providing flexibility in energy management. Its user-friendly interface and robust design ensure reliable operation, making it a cornerstone of your renewable energy system.
EG4 LiFePower4 5.12kWh Lithium Iron Phosphate Batteries
Energy storage is crucial for a consistent power supply, and the EG4 LiFePower4 batteries excel in this domain. Each battery offers a nominal voltage of 51.2V and a capacity of 100Ah, totaling 5.12kWh of storage. Built with 16 UL-recognized 3.2V LiFePO₄ cells, these batteries are tested for over 6,000 deep discharge cycles at 80% Depth of Discharge (DoD), translating to a lifespan exceeding 15 years under daily use. The internal 100A Battery Management System (BMS) ensures optimal performance by monitoring voltage, current, temperature, and overall battery health. The batteries are also equipped with emergency stop functionality and dual fire arrestors, enhancing safety. Their design allows for parallel connections of up to 64 units, enabling scalable energy storage solutions tailored to your needs.

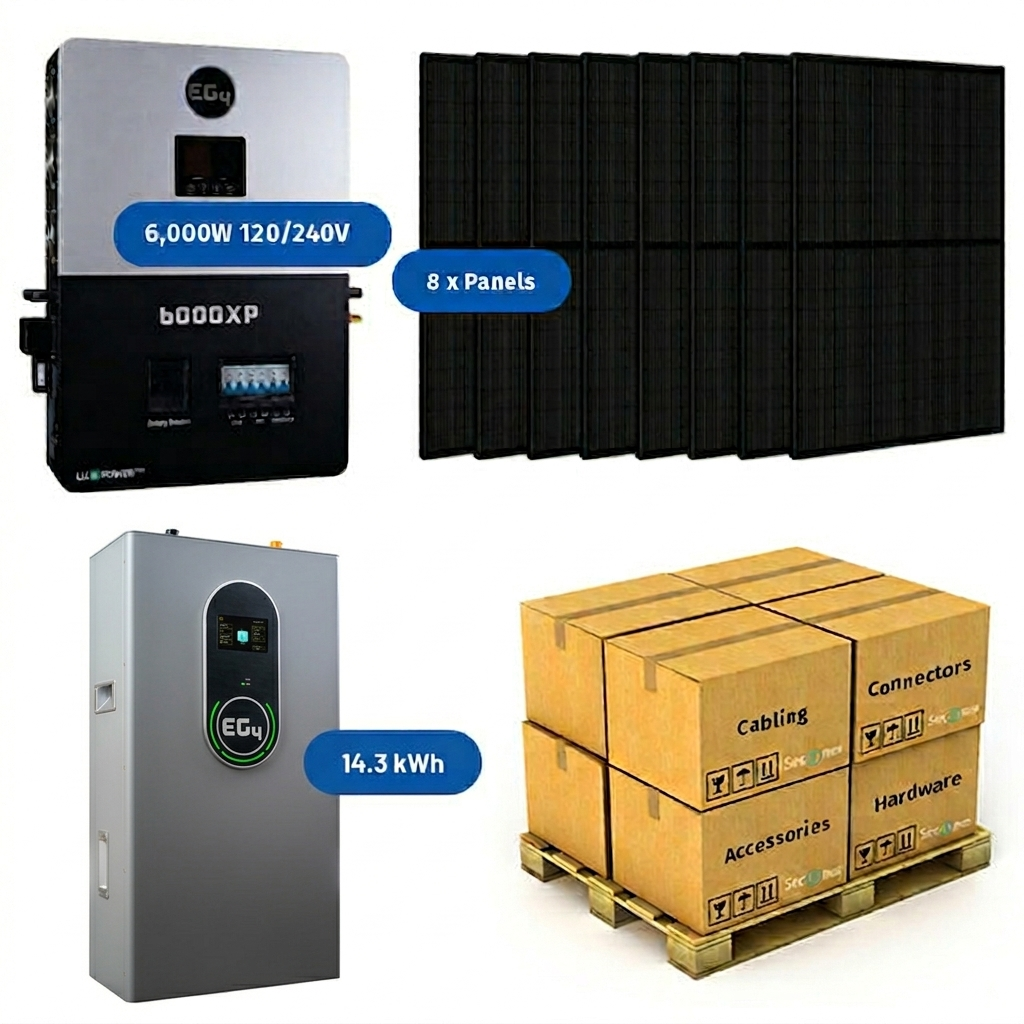

Included In Kit
- 8x - Hyundai 405W Bifacial Solar Panels (HiS-S405YH(BK) (or comparable)
- 1x - EG4 6000XP Off-grid Inverter
- 2x - EG4 LiFePower4 5.12kWh Batteries
- 1x - EG4 Battery Cabinet (3 Slot)
- 2x - 100 ft of 10 AWG MC4 Cable
- 2x - 15 ft of 10 AWG MC4 cable
- 1x - IMO Disconnect Switch IP66 True DC Solar Isolator
- 1x - MC4 connector with in-line 20A fuse
- 1x - MC4 Spanner tool set
- 2x - 4AWG 5/16“ lugs cables
- User Manuals
Technical Specification Tables
Hyundai HiS-S405YH(BK) 405W Solar Panel - Technical Specifications
Specification | Details |
---|---|
Model Number | HiS-S405YH(BK) |
Type | Bifacial Poly Half-Cell |
Rated Power Output | 405W |
Efficiency | Up to 20.5% |
Cell Configuration | 132 Half-Cut Cells |
Frame | Anodized Aluminum Alloy |
Front Glass | 3.2mm High-Transmission, AR-Coated Tempered Glass |
Weight | ~21.5 kg (47.4 lbs) |
Dimensions (L × W × D) | 1719 × 1140 × 30 mm |
Maximum System Voltage | 1,500V DC |
Operating Temperature | -40°C to 85°C |
Certifications | IEC 61215, IEC 61730, UL 61730 |
EG4 6000XP Off-Grid Inverter - Technical Specifications
Specification | Details |
---|---|
Model Number | EG4-6000XP |
Type | Hybrid Inverter (Off-Grid & Grid-Tied) |
Continuous Power Output | 6,000W |
Surge Power | 18,000W |
Battery Input Voltage | 48V DC |
AC Input Voltage | 120V/240V Split-Phase |
Maximum PV Input Power | 8,000W |
Maximum PV Input Voltage | 500V DC |
MPPT Voltage Range | 120V-450V DC |
Communication Interfaces | RS485, CAN, Wi-Fi |
Certifications | UL1741, CSA C22.2, FCC Part 15 |
EG4 LiFePower4 5.12kWh Battery - Technical Specifications
Specification | Details |
---|---|
Model Number | EG4-LiFePower4-5.12kWh |
Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah |
Energy Storage | 5.12kWh per unit |
Cycle Life | 6,000+ cycles at 80% DoD |
Maximum Charge/Discharge Current | 100A |
Parallel Expansion | Up to 64 batteries |
BMS (Battery Management System) | Integrated with protections for overcharge, over-discharge, short circuit, and temperature regulation |
Certifications | UL1973, UN38.3, CE, RoHS |
Datasheet | EG4 LIFEPOWER4 48V Spec Sheet |
This high-quality, scalable, and long-lasting renewable energy solution ensures energy independence, efficiency, and safety for years to come.
