Description

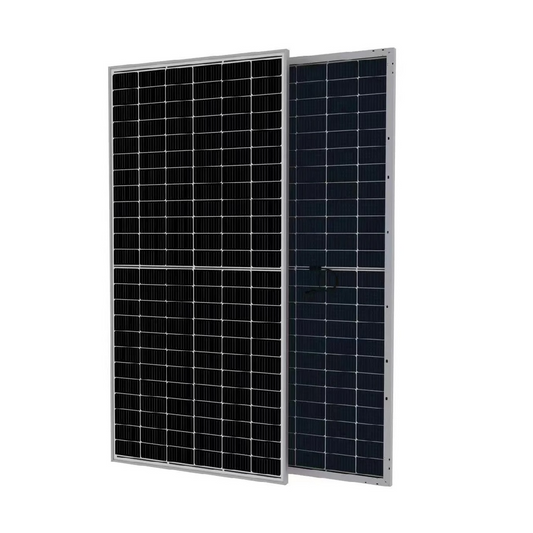

The Talesun BIPRO TM7G72M-590W is a premium 144-cell N-Type bifacial dual glass solar panel engineered for industry-leading yield, exceptional durability, and long-term reliable power generation across commercial and utility-scale applications.
Key Features
- 16BB Half-Cut N-Type Cell Technology Delivers lower LID/LeTID degradation, better low-light performance, and industry-leading attenuation of ≤1% in year one and ≤0.4% linear thereafter.
- Bifacial Dual-Sided Power Generation N-type bifacial technology captures rear-side power gain based on albedo, significantly reducing your levelized cost of energy.
- Excellent Anti-PID Performance Passes a rigorous 192-hour Anti-PID test, ensuring long-term output stability and protection against potential-induced degradation.
- Wider Application Durability No water permeability and high wear-resistance makes this panel suitable for high-humidity, windy, and dusty environments.
- IP68 Junction Box High-level waterproof protection with 3 bypass diodes ensures reliable electrical performance in all weather conditions.
This pallet of 37 modules delivers up to 21,830W of combined peak power, backed by a 12-year quality assurance warranty and a 30-year linear power output guarantee retaining 87.4% at year 30. Rear-side bifacial gain of up to 25% is achievable depending on installation albedo conditions.
Certified under IEC 61215, IEC 61730, and UL 61730, and compliant with ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018, the BIPRO TM7G72M meets the most stringent international quality, safety, and environmental management standards. The module is engineered to withstand 5400 Pa on the front and 2400 Pa on the back for reliable performance in extreme structural load conditions.
Constructed with 2.0mm AR-coated semi-tempered front glass, 2.0mm glazed semi-tempered back glass, and an anodized aluminum alloy frame, this panel is purpose-built for professional installation in the most demanding solar environments. Compatible MC4/MC4-EVO2A connectors and 4mm² output cables ensure flexible, code-compliant system integration.
Technical Specifications
| Specification | 585W | 590W | 595W | 600W | 605W |
|---|---|---|---|---|---|
| Short Circuit Current – Isc (A) | 13.89 | 13.94 | 13.99 | 14.04 | 14.09 |
| Operating Current – Imp (A) | 13.23 | 13.28 | 13.33 | 13.39 | 13.44 |
| Open Circuit Voltage – Voc (V) | 52.17 | 52.38 | 52.59 | 52.80 | 53.01 |
| Operating Voltage – Vmp (V) | 44.22 | 44.43 | 44.63 | 44.83 | 45.03 |
| Module Efficiency | 22.60% | 22.80% | 23.00% | 23.20% | 23.40% |
| Power Output Tolerance | 0~+5W | ||||
| Bifaciality Factor | 80% ±5% | ||||
| Cell Type | N-Type Mono-Crystalline (16BB) | ||||
| Number of Cells | 144 (6 x 24) | ||||
| Module Dimensions (mm) | 2278 x 1134 x 30 | ||||
| Weight | 70.11 lbs (31.8 kg) | ||||
| Front Glass | 2.0mm AR Coating Semi-Tempered Glass | ||||
| Back Glass | 2.0mm Glazed Semi-Tempered Glass | ||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction Box | IP68, 3 Bypass Diodes | ||||
| Connectors | MC4 / MC4-EVO2A / Others | ||||
| Output Cables | 4mm² (IEC), 12AWG (UL) | ||||
| Maximum System Voltage | 1500V DC | ||||
| Maximum Series Fuse | 30A | ||||
| Operating Temperature | -40°C to +85°C | ||||
| NMOT | 43 ±2°C | ||||
| Mechanical Load – Front | 5400 Pa | ||||
| Mechanical Load – Back | 2400 Pa | ||||
| Temp. Coefficient of Pmax | -0.29%/°C | ||||
| Temp. Coefficient of Voc | -0.24%/°C | ||||
| Temp. Coefficient of Isc | +0.043%/°C | ||||
| Safety Protection Class | Class II | ||||
| Pieces Per Pallet | 37 | ||||
| Quality Assurance Warranty | 12 Years | ||||
| Power Output Warranty | 30 Years |
