Description

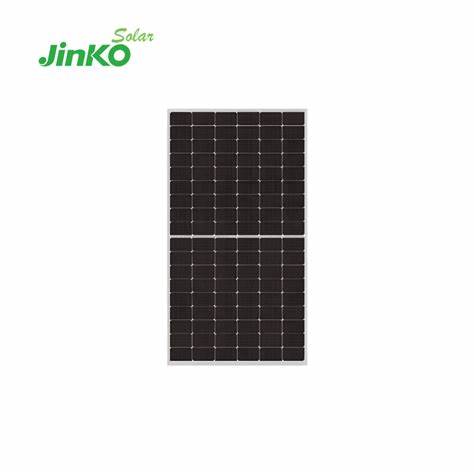

This 36-panel pallet is a turnkey, high-output package for C&I rooftops, carports, and ground mounts where low LCOE and clean aesthetics matter. Each module in Jinko’s Tiger Neo line uses N-type TOPCon half-cells (144, M10/182 mm) in a dual-glass bifacial laminate. The “clear on white” look delivers a crisp front appearance while the transparent rear harvests albedo from bright surfaces to lift real-world kWh. Hardware is installer-friendly—1500 VDC strings, IP68 junction box, and MC4-type connectors—backed by robust mechanical ratings and long warranties (12-yr product / 30-yr linear performance with ~0.40%/yr degradation). Tight factory binning and multi-busbar/half-cell topology reduce mismatch and resistive loss, improving shade behavior and thermal stability. For buyers planning staged commissioning, one pallet (36 pcs) simplifies receiving, hoisting, and spare management while delivering 20.88 kW STC of nameplate capacity in a compact footprint.
Technical Specifications — Per Panel (STC unless noted)
| Category | Specification |
|---|---|
| Model | JKM580N-72HL4-BDV |
| Rated power | 580 W |
| Module efficiency | 22.45% |
| Cell / layout | 144 half-cut N-type TOPCon, SMBB (M10/182 mm) |
| Construction | Dual-glass bifacial, clear on white (front 2.0 mm / back 2.0 mm) |
| Vmp / Imp | 42.59 V / 13.62 A |
| Voc / Isc | 51.47 V / 14.37 A |
| Bifacial factor (ref.) | ~80 ±5% (site dependent rear gain) |
| Max system voltage | 1500 VDC |
| Max series fuse | 30 A |
| Connectors / Leads | MC4-type; portrait leads typ. (+) 400 mm / (–) 200 mm |
| Junction box | IP68, 3 bypass diodes |
| Mechanical loads | 5400 Pa snow (front) / 2400 Pa wind (back) |
| Dimensions / weight | 2278 × 1134 × 30 mm · ≈ 32 kg |
| Operating temperature | −40 °C to +85 °C |
| Warranty | 12-yr product, 30-yr linear power |
Technical Specifications — Bundle (36 pcs / 1 pallet)
| Category | Specification |
|---|---|
| Total nameplate | 20,880 W (20.88 kW) STC |
| Total module area | ~93.0 m² (≈ 1,001 ft²) |
| Total module weight | ~1,152 kg (≈ 2,540 lb) |
| Palletization | 36 pcs per pallet (reference packaging) |
Design & Deployment Notes
-
Model bifacial gains by site albedo (white TPO roofs, bright concrete, gravel, snow) and mounting height/row spacing.
-
Verify string length at Tmin using Voc 51.47 V and your local temperature coefficients/margins for 1500 VDC.
-
Confirm clamp zones with racking vendor; check connector mating and lead orientation (portrait vs. landscape).
-
Keep a small spare reserve from the pallet for fast field swaps and long-term O&M continuity.
