Description

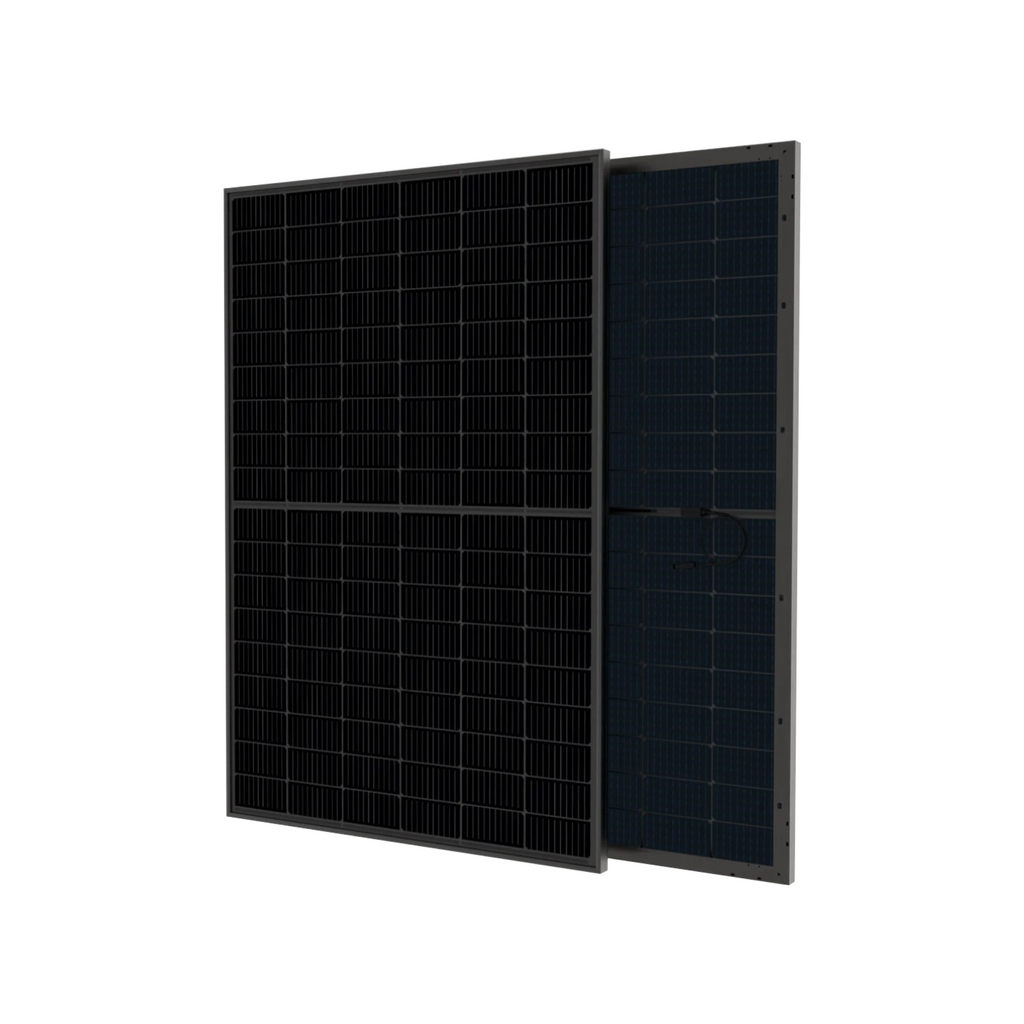

The 35-panel bundle of the CW Energy 450W All-Black solar modules delivers a high-density rooftop or ground-mount PV solution optimized for residential and light commercial systems. With a combined 15.75 kW DC nameplate capacity, this bundle is ideal for larger homes, hybrid/backup-ready systems, or projects aiming to maximize production while maintaining a clean, uniform appearance.
Each panel features a modern 108-cell monocrystalline layout that supports higher operating voltages and efficient stringing with today’s high-voltage inverters. The all-black design provides a premium aesthetic without sacrificing performance, making it well-suited for visible residential rooftops and HOA-sensitive installs.
Product Details
High-Power System in Fewer Panels
At 450 W per module, fewer panels are needed to reach higher system sizes, reducing racking, wiring, and installation labor compared to lower-wattage modules.
108-Cell, High-Voltage Design
The 108-cell configuration enables longer strings and flexible inverter pairing, helping simplify balance-of-system components while maintaining strong real-world output.
All-Black Aesthetic
Black frame, black backsheet, and dark cells create a uniform, low-profile appearance—ideal for residential and architecturally sensitive installations.
Durable, Installer-Ready Construction
Built with tempered glass, a rigid aluminum frame, and industry-standard connectors for long-term outdoor performance across a wide range of climates.
Scalable & Compatible
Works seamlessly with most grid-tied, hybrid, and battery-ready string inverters commonly used in residential and light commercial systems.
Technical Specifications (Per Panel)
| Category | Specification |
|---|---|
| Model | CWT450-108TNB10 |
| Rated Power (STC) | 450 W |
| Cell Configuration | 108-cell monocrystalline |
| Module Efficiency | ~20.5–21.5% |
| Vmp | ~38 V |
| Imp | ~11.8 A |
| Voc | ~46 V |
| Isc | ~12.5 A |
| Frame | All-black anodized aluminum |
| Glass | Anti-reflective tempered glass |
| Connector | MC4-compatible |
| Operating Temp | ~-40 °C to +85 °C |
| Dimensions | ~2108 × 1048 × 35 mm |
| Weight | ~27 kg (~60 lb) |
Bundle Summary (35× Panels)
| Item | Quantity | System Total |
|---|---|---|
| CW Energy 450W All-Black Solar Panel | 35 | 15,750 W (15.75 kW DC) |
| Cell Count (total) | — | 3,780 cells |
| Typical Stringing | — | Designed for high-voltage string inverters |
Typical Applications
-
Large residential rooftop systems
-
Hybrid solar + battery projects
-
Homes with EV charging or electric HVAC
-
Light commercial PV installs
-
Projects targeting high output with clean aesthetics
Practical Design Notes
-
Inverter Pairing: A 15.75 kW DC array pairs well with ~11–15 kW AC inverter capacity, depending on desired DC:AC ratio.
-
String Design: The 108-cell voltage profile supports long strings while staying within common 600–1000 V inverter limits (design dependent).
-
Roof Coverage: Ensure adequate roof area and structural capacity for 35 full-size modules.
