Description

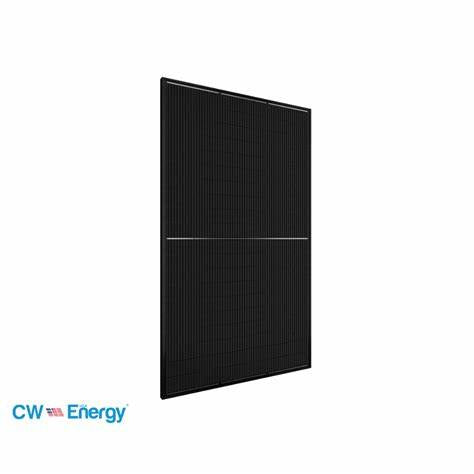

Clean-looking, high-yield 108 half-cell mono PERC modules with a black frame and transparent rear for bifacial gain. This 35-piece bundle is ideal for small commercial arrays and dense rooftops where you want premium aesthetics and dependable output without ballooning BOS cost.
Each panel is engineered for low-light start-up and stable production in real-world heat, with a 1500 VDC system rating, IP68 junction box, and robust mechanical loads. Standard MC4-type leads speed installation, and the positive power tolerance helps you capture every watt.
One pallet (35 pcs) simplifies receiving and staging, while keeping replacement spares on hand for maintenance or future expansion.
Key Features (Bundle Highlights)
-
14.35 kW STC total (35 × 410 W) with bifacial rear-side gain potential on reflective roofs/ground
-
Compact, aesthetic footprint: all-black front, black anodized frame, low-glare AR glass
-
Rugged build: 1500 VDC strings, IP68 junction box, 10-busbar half-cell layout for reliability
-
Installer-friendly: MC4-type connectors, standard width, compatible with common clamps/racking
-
Palletized: 35 pcs per pallet for easier logistics, inventory, and spares management
Technical Specifications
Per-Panel (STC unless noted)
| Category | Specification |
|---|---|
| Rated power | 410 W |
| Module efficiency | 21.0% |
| Cell / layout | 108 half-cut mono PERC, M10, 10BB |
| Vmp / Imp | 31.50 V / 13.02 A |
| Voc / Isc | 37.50 V / 13.85 A |
| Bifaciality / rear gain | Up to ~30% site-dependent |
| Max system voltage | 1500 V DC |
| Max series fuse | 25 A |
| Dimensions / weight | 1722 × 1134 × 30 mm · ~22 kg |
| Glass / frame | 3.2 mm AR glass · Black anodized Al |
| Junction box / ingress | 3-diode · IP68 |
| Leads / connector | ~1400 mm · MC4-type |
| Mechanical loads | 5400 Pa snow / 5400 Pa wind |
| Operating temp | −40 °C to +85 °C |
| Power tolerance | 0 to +5 W |
| Warranty | 12-yr product · 30-yr linear performance |
Bundle (35 pcs)
| Category | Specification |
|---|---|
| Total nameplate | 14,350 W (14.35 kW) STC |
| Total weight | ~770 kg (≈ 1,698 lb) |
| Total module area | ~68.4 m² (≈ 736 ft²) |
| Palletization | 35 pcs / pallet (single pallet) |
