Description

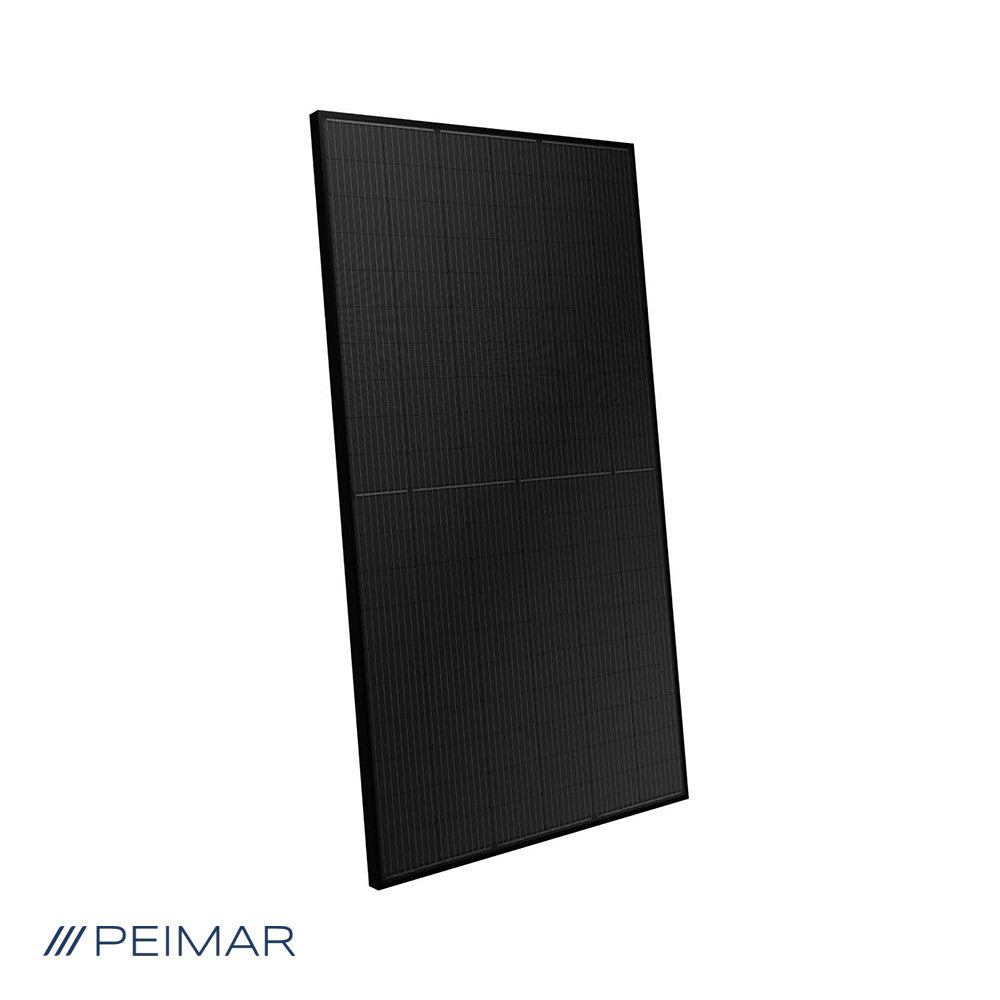

Italian engineering meets real-world rooftop performance — the Peimar DR10H450M(FB) delivers 450W of reliable monofacial PERC output in a sleek all-black finish, backed by one of the strongest warranty packages in the industry including QBE Product Liability Insurance. This pallet of 31 panels gives you 13,950W of total array capacity straight off the truck.
- 120 Cell M10 Half-Cut PERC Technology – Mono M10 half-cut cell design reduces resistive losses and improves performance under partial shading conditions for more consistent real-world output.
- Anti-Reflective Low-Iron Tempered Glass – 3.2mm low-iron front glass with anti-reflective treatment maximizes light capture and energy yield across all weather and irradiance conditions.
- Compact Double-Wall Aluminum Frame – Sturdy anodized double-wall black frame is anchorable on the short side, giving installers more flexibility on challenging roof layouts and racking configurations.
- Low Temperature Coefficient – A -0.29%/°C Pmax temperature coefficient keeps output strong in real-world heat, outperforming standard PERC modules in high-temperature rooftop environments.
- 30-Year Linear Power Warranty – Backed by a 25-year product warranty and a 30-year linear power performance guarantee, plus QBE Product Liability Insurance for added peace of mind on every install.
Designed and engineered in Italy, the DR10H450M(FB) is built to Peimar's exacting quality standards with an IP68-rated junction box, 3 serviceable bypass diodes, and EVA encapsulant for long-term protection in demanding environments. The all-black frame and black backsheet deliver a uniform, high-end aesthetic that premium residential customers and discerning installers expect.
At just 52.9 lbs per panel with a slim 35mm profile, this full pallet of 31 handles cleanly on the roof without adding unnecessary structural load. The 0/+5W positive power tolerance means every panel ships at or above its 450W nameplate rating — no surprises on commissioning day.
With UL 61730 certification and a Type 4 fire performance rating, this pallet meets the requirements for residential and light commercial installations across North America without additional fire-rated underlayment concerns.
Technical Specification
| Specification | DR10H450M(FB) – Pallet of 31 |
|---|---|
| Quantity | 31 Panels (1 Pallet) |
| Total Array Power | 13,950 W (13.95 kW) |
| Pallet Weight | 1,708.58 lbs |
| Pallet Dimensions (L x W x H) | 76.38 x 44.49 x 50.00 in |
| Peak Rated Power (Pmax) | 450 W |
| Maximum Power Voltage (Vmp) | 33.91 V |
| Maximum Power Current (Imp) | 13.27 A |
| Open Circuit Voltage (Voc) | 41.18 V |
| Short Circuit Current (Isc) | 13.85 A |
| Module Efficiency | 20.82% |
| Power Output Tolerance | 0 / +5 W |
| Max System Voltage | 1500 V |
| Max Series Fuse Rating | 25 A |
| Solar Cells | 120 M10 Half-Cut Monocrystalline PERC |
| Cell Size | 182 x 91 mm |
| Front Cover | 3.2mm Low-Iron Tempered Glass, Anti-Reflective |
| Back Cover | TPT (Tedlar-PET-Tedlar) |
| Encapsulant | EVA (Ethylene Vinyl Acetate) |
| Frame | Anodized Aluminum Alloy, Double Wall (Black) |
| Backsheet Finish | Black |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Connector | MC4 or Compatible |
| Cable Length | 1,200 mm (47.24 in) |
| Cable Section | 4.0 mm² |
| Dimensions (L x W x D) | 75.03 x 44.64 x 1.38 in |
| Weight per Panel | 52.9 lbs |
| Max Load (Front) | 5,400 Pa |
| Safety Protection Class | Class II |
| NOCT | 43°C ± 2°C |
| Operating Temperature | -40°C to +85°C |
| Temp. Coefficient of Pmax | -0.29%/°C |
| Temp. Coefficient of Voc | -0.25%/°C |
| Temp. Coefficient of Isc | 0.046%/°C |
| Fire Performance Rating | Type 4 |
| Certifications | UL 61730 |
| Product Warranty | 25 Years |
| Linear Power Warranty | 30 Years |
