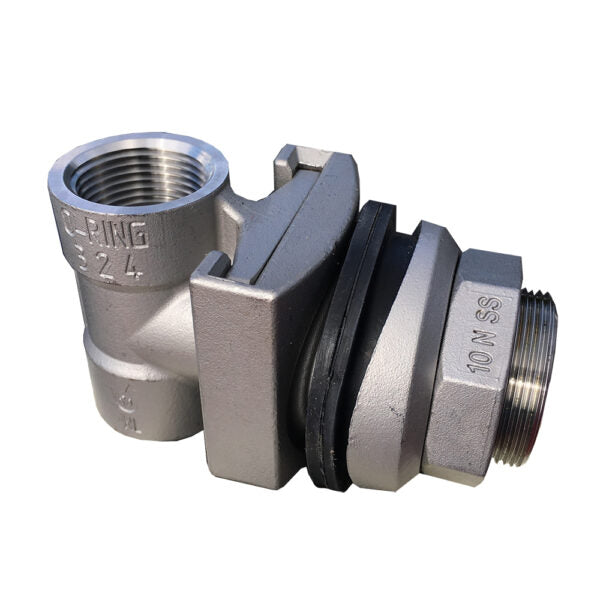

Pitless Adapter – 2″ | #304 Stainless Steel

This 2" #304 stainless steel pitless adapter features a large gasket for more efficient sealing on the casing and a chamfered slide for easy installation, providing a water tight 90° connection below the frost line between the drop pipe and the service line.

Key Features:

• Large Gasket for Efficient Sealing: Oversized gasket design provides more efficient sealing on the well casing compared to standard pitless adapters.
• Chamfered Slide for Easy Installation: Chamfered slide design simplifies installation, making below-frost-line connections faster and easier in the field.
• #304 Stainless Steel Construction: Built from #304 stainless steel for corrosion resistance and long-term durability in wet well environments.
• Water Tight 90° Below-Frost-Line Connection: Creates a sanitary, quick-connect assembly between the drop pipe from the submersible pump and the service line, making a 90° change in flow direction discharged through to the water storage tank.
• Eliminates the Need for a Well Pit: Pitless adapters replace the old well pit system, providing a sanitary and fast connection below the frost line without an unsanitary or dangerous pit.

The P-200-SS pitless adapter provides a quick connect assembly below the frost line — connecting the drop pipe (riser pipe) from the submersible pump to the well head with a watertight 90° turn and discharge through the service line. The slide type design allows the connection to be assembled and disassembled from above ground without entering a pit.

Technical Specifications
