Description
Key Features
-
405 W Maximum Power per Module — high output in commercial-scale panels
-
Half‑Cell Monocrystalline Design — improved efficiency, lower internal losses
-
1500 V System Voltage Rating — allows longer strings, reducing BOS cost
-
Durable Build & Warranty — designed for harsh environments, backed by long warranties
Product Description

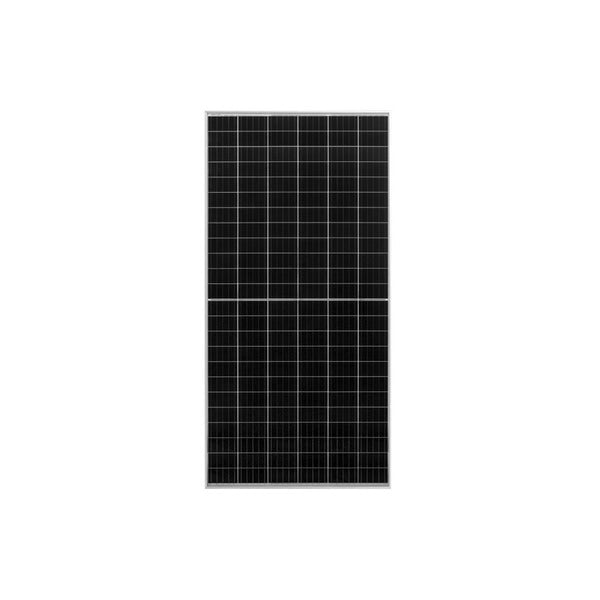

The Eagle 72HM G2 405W (JKM405M‑72HL‑V) is a premium half-cell module engineered for large‑scale solar deployments. With 27 units, this setup yields robust power capacity and optimal performance, suited for commercial rooftops, ground arrays, or utility installations.
Each module features 144 half-cells (6×24 layout) of mono PERC “Diamond” technology, packaged in a silver/white frame that balances aesthetics and durability. The panel is rated up to 1500 VDC, which helps reduce the number of strings, combiner boxes, and conductors—lowering balance-of-system costs. The design also includes reinforcement for snow and wind loads (5400 Pa snow, 2400 Pa wind) and carries a 25-year performance warranty. jinkosolar.us+1
Technical Specifications (Single Panel)
| Specification | Value |
|---|---|
| Model / Type | JKM405M‑72HL‑V / Eagle 72HM G2 |
| Maximum Power (Pmax) | 405 W |
| Open-Circuit Voltage (Voc) | 50.1 V |
| Short-Circuit Current (Isc) | 10.48 A |
| Voltage at Pmax (Vmp) | 42.0 V |
| Current at Pmax (Imp) | 9.65 A |
| Number of Cells | 144 half-cells (6 × 24) |
| Dimensions | 79.06"×39.45"×1.57" |
| Weight | 22.5 kg (49.6 lbs) |
| Frame Material / Finish | Anodized Aluminum |
| Temperature Coefficient (Pmax) | –0.35 % / °C |
| Temperature Coefficient (Voc) | –0.29 % / °C |
| Temperature Coefficient (Isc) | +0.048 % / °C |
| Maximum System Voltage | 1500 V DC |
| Mechanical Load Ratings | 5400 Pa (snow), 2400 Pa (wind) |
| Warranty | 10-year Product / 25-year performance guarantee |
27‑Panel System Summary
| Metric | Total Value (27 Panels) |
|---|---|
| Combined Maximum Power | 26 × 405 W = 10,530 W (≈ 10.53 kW) |
| Total Weight | 26 × 49.6 lbs = 1289.6 lbs |
