Outback FLEXware Add-ons
Charge controllers, additional AC and DC input, load breakers, and/or the other options listed here can be added to your FLEXware power system, either at the time of pre-assembly, or in the field if you choose the parts-only option. Many other options not listed here also are available.
|
Model |
Description |
||
|
Installed Part Item code |
Part Item code |
||
|
MX60 Control |
One OutBack MX60 60-amp charge controller mounted on side with breaker |
033-01513 |
031-02407 |
|
2 x MX60 |
Two OutBack MX60 60-amp charge controller mounted on side with breakers |
033-01515 |
031-02409 |
|
2 x MX60 |
Two OutBack MX60 60-amp charge controller mounted on top with breakers |
033-01517 |
031-02411 |
|

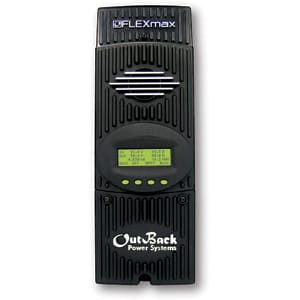

FLEXmax 80 Control |
One OutBack FM80 80-amp charge controller mounted on side with breaker |
033-01521 |
031-02413 |
|

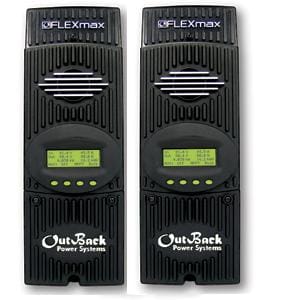

2 x FLEXmax 80 |
Two OutBack FM80 80-amp charge controller mounted on side with breakers |
033-01522 |
031-02415 |
|

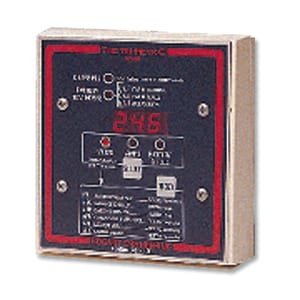

TriMetric meter |
Amp-hour meter – installed in PSDC 24 volt system |
033-01215 |
031-02417 |
|
TriMetric meter |
Amp-hour meter – installed in PSDC 48 volt system |
033-01216 |
031-02419 |
|
OBDC-GFP2 |
Ground fault interrupter for PV array installed in DC system box |
033-01221 |
031-02421 |
|

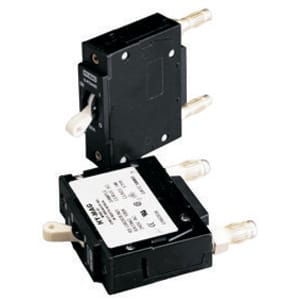

OBDC-100 |
100-amp DC load breaker installed in system |
033-01227 |
031-02423 |
|
OBDC-80 |
80-amp DC load breaker installed in system |
033-01228 |
031-02425 |
|
OBDC-60 |
60-amp DC load breaker installed in system |
033-01229 |
031-02427 |
|
OBDC-40 |
40-amp DC load breaker installed in system |
033-01231 |
031-02429 |
|
OBDC-30 |
30-amp DC load breaker installed in system |
033-01233 |
031-02431 |
|
OBDC-15 |
15-amp DC load breaker installed in system |
033-01235 |
031-02433 |
|
OBDC-10 |
10-amp DC load breaker installed in system |
033-01237 |
031-02435 |
|
OBDC-1 |
1-amp DC load breaker installed in system |
033-01239 |
031-02437 |
|

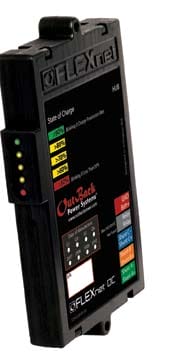

Flexnet |
Flexnet metering installed with 2 additional shunts (3 total) |
033-01291 |
031-02451 |
|
Aux Relay |
Aux relay installed (specify inverter or MX60) |
033-01287 |
031-02455 |
|
SP-ACA |
Surge Protector ACA installed (one per inverter) |
033-01285 |
031-02463 |
