E-Panels for Schneider Electric Conext Inverters

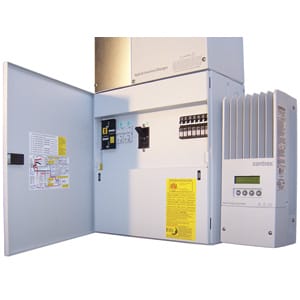

The XW inverter is mounted directly above the E-Panel. It comes with a 175 or 250-amp inverter battery breaker, AC inputs for generator and utility, knockouts for up to 7 DIN rail mount breakers and 6 panel mount breakers and a 500-amp shunt. Massive tin-plated copper bus bars connect to the XW's battery terminals. There are bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, covered by a metal dead-front behind the reversible door. Charge controllers mount to either side or both sides at once for dual controllers. The AC bypass can be configured as input and output on/off as well as AC bypass. The XW MPPT controller requires no mounting bracket. MX60, MF80 and Classic require right or left E-Panel charge controller mounting brackets. A right-hand bracket is included. The color-matched enclosure is 16 wide, 18 tall, 8 deep and weighs 42 pounds.
