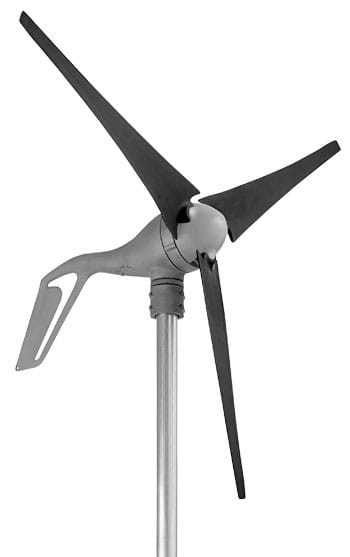

Air Breeze Owners Manual ( Text Only)



Southwest Windpower, Inc.
1801 West Route 66
Flagstaff, Arizona 86001
Toll Free Phone: 866.805.9463
Phone: 928.779.9463
Fax: 928.779.1485

www.airbreeze.com

Owner’s Manual

Installation

Operation

Maintenance

  September 2008 Southwest Windpower, Inc.
All Rights Reserved

 = Page 1 =


 = Page 2 =


 Air Breeze Owner’s Manual  _x0018_

Southwest Windpower
Congratulations on your purchase and welcome to our family!

Dear Air Breeze Owner,

Thank you for your purchase of Air Breeze. You have purchased the most advanced battery charging wind turbine in the world!  We believe you will find it
easy to install your Air Breeze and are confident you will experience years of dependable service from it.

Before going any further, please complete and return the Warranty Registration Card. Note - Southwest Windpower does not sell or distribute your per-
sonal information to any third party. We understand and respect your privacy.

If you have any questions or comments, we would like to hear from you. Please call during working hours (Monday-Friday – 8:00am to 5:00pm Arizona
Standard Time). Our numbers are 928-779-9463, toll-free 866-805-9463.

Again, welcome to our family and thank you for investing in the future of wind energy with Air Breeze.

Sincerely,

Southwest Windpower

Enter the serial and model numbers below

Serial Number  __________________________________

Model Number __________________________________

Air Breeze Installation Manual
Document No. 3-CMLT-1327-01
Revision: B

AIR, AIR 403, AIR-X, AIR Wind Module are trademarks of Southwest Windpower    2007 Southwest Windpower, Inc.

 = Page 3 =


_x0018_  Air Breeze Owner’s Manual

  1)  SAVE THESE INSTRUCTIONS. This manual contains important instructions that must
    be followed during assembly, installation and maintenance.
  2)  Read, understand and respect all warnings.
  3)  Do not install Air Breeze on a windy day.
  4)   If unusual noise or operation is experienced, turn off machine and contact authorized
    service personnel.
  5)  During assembly and installation properly torque all fasteners.
  6)  Use only proper grounding techniques as established by the NEC.
  7)  Properly complete the Warranty Registration Card.
  8)  Breeze must be installed in accordance with this manual and local and national build-
    ing codes. Failure to comply with this manual and local codes may affect and possibly
    void your warranty.
  9)  Rotating blades are a serious mechanical hazard. Install Air Breeze so no one can come
    into contact with blades.
 10)  Observe wire size and fuse recommendations listed in the Wiring Section of this manual.

TIP: Indicates instruction or advice
that may simplify or ease task or
operation.

IMPORTANT: Indicates instruction
or advice that is critical for correct
assembly or operation. Damage
to equipment may result if not
heeded.

In this manual you will see the
following icons:

One - Important Safety Instructions

REAd ThESE INSTRuCTIONS IN ThEIR ENTIRETy bEfORE ASSEMblINg, INSTAllINg OR OPERATINg yOuR AIR bREEzE

lANd uSE: Specific to Land Use.

MARINE uSE: Specific to Marine
Use.

WARNINg: Indicates risk of severe
injury or death or possible severe
damage to equipment - proceed
with caution and follow instructions.

 = Page 4 =


 Air Breeze Owner’s Manual  _x0018_

Contents

1) IMPORTANT SAfETy INSTRuCTIONS  __________________  4

    WARRANTy  _________________________________________  6

    TEChNICAl SPECIfICATIONS  ________________________  7
2) TuRbINE ASSEMbly  ________________________________  8
3) SITINg  ______________________________________________  9

4) TOWERS ____________________________________________  10
       4-1 Tower Options  ___________________________________  10

    4-1-1 27 ft (8.3 m) Tower Kit  _______________________  11

    4-1-2 29 ft (8.8 m) Tower Kit  _______________________  11

    4-1-3 45 ft (13.7 m) Tower Kit  _____________________  12

    4-1-4 Marine Tower Kit  ___________________________  12
5) WIRINg OPTIONS  ____________________________________  13-14
       5-1 Hybrid System Wiring  _____________________________  15
       5-2 Multiple Air Breeze Wiring _________________________  16
       5-3 Wire Size _______________________________________  17-18
       5-4 Stop Switch _____________________________________  18
       5-5 Fuses, Circuit Breakers, Ammeter  ___________________  19
       5-6 Batteries  _______________________________________  19
       5-7 Turbine Grounding _______________________________  19-20

  5-8 Tower Grounding  ________________________________  20

    5-8-1 Electrodes Driven in Soil______________________  20
6) INSTAllATION ______________________________________  21
       6-1 Wire Connections ________________________________  21
       6-2 Mounting on Tower  _______________________________  22
       6-3 Final Connections ________________________________  22

7) AIR bREEzE OPERATION _____________________________  23-25
       7-1 Operational Summary _____________________________  23
       7-2 Operating Modes  ________________________________  23
       7-3 Voltage Regulation _______________________________  24

    7-3-1 Adjusting Regulation Voltage  __________________  24

    7-3-2 Using an Alternate Charge Controller ___________  24-25

8) MAINTENANCE ______________________________________  25
9) TROublE ShOOTINg ________________________________  26
10) EXPlOdEd VIEWS & PARTS lIST  ____________________  28-29
11) EC dEClARATION Of CONfORMITy  _________________  30





 = Page 5 =


_x0018_  Air Breeze Owner’s Manual

hardware Warranty
Southwest Windpower, Inc., (“Southwest Windpower”) will repair or replace free of
charge any part or parts of the Southwest Windpower Air Breeze (Land or Marine) Wind
Turbine determined by Southwest Windpower to be defective in materials and/or work-
manship under normal authorized use consistent with product instructions for a period of
three years from the date the original purchaser (“Customer”) receives the Wind Turbine
(“Start Date”). This warranty extends only to the original purchaser. The Customer’s sole
and exclusive remedy and the entire liability of Southwest Windpower, its suppliers and
affiliates under the warranty is, at Southwest Windpower’s option, either (i) to replace
the Wind Turbine with new or reconditioned Wind Turbine; (ii) to correct the reported
problem; or (iii) to refund the purchase price of the Wind Turbine. Repaired or replaced
products are warranted for the remainder of the original warranty period.

Restrictions
Problems with the Wind Turbine Products can be due to improper use, improper main-
tenance, non-Southwest Windpower additions or modifications or other problems not
due to defects in Southwest Windpower’s workmanship or materials. No warranty will
apply if the Wind Turbine (i) has been altered or modified except by Southwest Wind-
power; (ii) has not been installed, operated, repaired, or maintained in accordance with
instructions supplied by Southwest Windpower; (iii) or (iv) has been exposed to winds
exceeding 120 mph (54 m/s), or has been subjected to abnormal physical, thermal
or electrical stress, misuse, negligence, or accident. If Southwest Windpower’s repair
facility determines that the problem with the Wind Turbine is not due to a defect in
Southwest Windpower’s workmanship or materials, then the party requesting warranty
service will be responsible for the costs of all necessary repairs and expenses incurred
by Southwest Windpower.

Warranty Claims & Return Procedures
In order to be eligible for service under this warranty, the Customer must submit a
service request for Wind Turbine covered by this warranty within the warranty period by
contacting Southwest Windpower in writing or via telephone and obtaining a Return
Authorization (“RA”) number. This RA must be obtained before returning any product
under this warranty.

Notification must include a description of the alleged defect, the manner in which the
Wind Turbine was used, the serial number, and the original purchase date in addition
to the name, address, and telephone number of the party requesting warranty service.
Within 3 business days of the date of notification, Southwest Windpower will provide
the Customer with an RA number and the location to which the Customer must return
the defective Wind Turbine. Any Wind Turbine requiring warranty shall be transported
at the expense and risk of the party requiring warranty service, including but not limited
to proper packaging of the Product. The Customer must return the entire Wind Turbine
kit within 30 days after issuance of the RA number. Southwest Windpower will be

under no obligation to accept any returned Wind Turbine that does not have a valid RA
number. Customer’s failure to return the Wind Turbine within 30 days of its receipt of
an RA number may result in cancellation of the RA. All parts that Southwest Wind-
power replaces shall become Southwest Windpower’s property on the date Southwest
Windpower ships the repaired Wind Turbine or part back to the Customer. Southwest
Windpower will use all reasonable efforts within five days of receipt of the defective
Wind Turbine to repair or replace such Wind Turbine. If a warranty claim is invalid for
any reason, the Customer will be charged at Southwest Windpower’s then-current
rates for services performed and will be charged for all necessary repairs and expense
incurred by Southwest Windpower.

disclaimer
EXCEPT FOR THE EXPRESSED WARRANTY SET FORTH ABOVE, SOUTHWEST
WINDPOWER DISCLAIMS ALL OTHER EXPRESSED AND IMPLIED WARRAN-
TIES, INCLUDING THE IMPLIED WARRANTIES OR FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY AND NON-INFRINGEMENT. NO OTHER WAR-
RANTY, EXPRESSED OR IMPLIED, WHETHER OR NOT SIMILAR IN NATURE TO
ANY OTHER WARRANTY PROVIDED HEREIN, SHALL EXIST WITH RESPECT TO
THE PRODUCT SOLD UNDER THE PROVISIONS OF THESE TERMS AND CON-
DITIONS. SOUTHWEST WINDPOWER EXPRESSLY DISCLAIMS ALL LIABILITY
FOR BODILY INJURIES OR DEATH THAT MAY OCCUR, DIRECTLY OR INDIRECT-
LY, BY USE OF THE PRODUCT BY ANY PERSON. ALL OTHER WARRANTIES ARE
EXPRESSLY WAIVED BY THE CUSTOMER.

limitation of liability
UNDER NO CIRCUMSTANCES WILL SOUTHWEST WINDPOWER OR ITS AFFIL-
IATES OR SUPPLIERS BE LIABLE OR RESPONSIBLE FOR ANY LOSS OF USE,
INTERRUPTION OF BUSINESS, LOST PROFITS, LOST DATA, OR INDIRECT, SPE-
CIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND REGARD-
LESS OF THE FORM OF ACTION, WHETHER IN CONTRACT, TORT (INCLUDING
NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, RESULTING FROM THE DE-
FECT, REPAIR, REPLACEMENT, SHIPMENT OR OTHERWISE, EVEN IF SOUTH-
WEST WINDPOWER OR ITS AFFILIATE OR SUPPLIER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE. (Note: some states and provinces
do not allow the exclusion or limitation of incidental or consequential damages, so
these limitations may not apply to you.) Neither Southwest Windpower nor its affiliates
or suppliers will be held liable or responsible for any damage or loss to any items or
products connected to, powered by or otherwise attached to the hardware. The total
cumulative liability to Customer, from all causes of action and all theories of liability, will
be limited to and will not exceed the purchase price of the Product paid by Customer.
This warranty gives the Customer specific legal rights and the Customer may also have
other legal rights that vary from state to state or province to province.

Air breeze 3-year limited Warranty

3-CMLT-1331 REV NC 10-07

WINd TuRbINE WARRANTy AgREEMENT

 = Page 6 =


 Air Breeze Owner’s Manual  _x0018_

Air breeze Technical Specifications

 Model    Air Breeze

 Weight    13 lb / 6 kg

 Rotor diameter    46 in / 1.17 m

 Start up Wind Speed    6 mph / 2.7 m/s
 Kilowatt hours/month    38 kWh/month @ 12 mph / 5.4 m/s avg. wind speed

 Maximum Wind Speed    110 mph

 Rated Power    160 watts @ 28 mph / 12.5 m/s wind speed
 Certifications    CSA (certificate 1954979)
 Operating Temperature Range  Air Breeze is certified under IEC requirements applying to
    the temperature range 14º F (-10º C) to 104º F (40º C)

12 volt and 24 volt Air Breeze wind turbines are eligible to bear the CSA mark with “C” and
“US” indicators. The “C” and “US” indicators signify that the product has been evaluated to the
applicable CSA and ANSI/UL standards for use in Canada and the US.

 Voltage Regulation Set Point (factory setting)
12 Volt Systems 14.1 Volts
24 Volt Systems 28.2 Volts
48 Volt Systems 56.4 Volts

 Regulator Adjustment Range
12 Volt Systems 13.6 to 17.0 Volts (approximately)
24 Volt Systems 27.2 to 34.0 Volts (approximately)
48 Volt Systems 54.4 to 68.0 Volts (approximately)
 Recommended fuse Size
12 Volt Systems 20 amp (slow blow)
24 Volt Systems 10 amp (slow blow)
48 Volt Systems  5 amp (slow blow)

  Tower loads

 Shaft Thrust*  52 lb @ 100 mph wind speed (230 N @ 45 m/s)

*Value does not include safety factor. SWWP recommends safety factor of 1.5.

26.6 in (67.5 cm) 46 in
(1.15 cm)

2.0 in
(5 cm)

22.5 in (56 cm)
minimum safe pole
length above
obstructions

24.5 in radius
(61 cm)

 = Page 7 =


_x0018_  Air Breeze Owner’s Manual

Your Air Breeze is delivered partially assembled. Assembly requires mount-
ing the blades on the blade hub, securing the hub to the turbine body and
installing the nosecone on the blade hub. The necessary hex key (Allen)
wrenches are furnished with Air Breeze.

Torque Specifications:

Blade to hub screw, 1/4 - 20 x 1.25, socket head screw 10 ft-lbs (13.6 Nm)

Hub to rotor nut, 5/8-18, 50 ft-lbs (68 Nm)

Yaw clamp bolts, M5-0.8 x 35 mm 6 ft-lbs (8 Nm)

Start the assembly by mounting the blades (Item1) to the blade hub as
shown in fig. 1. Place a nylock nut (Item 4) in the hexagonal detent on the
back of the blade hub while positioning the blade on the hub.

The blades must be “tilted” into position on the hub and can only be
installed in one orientation.

Place a washer (Item 2) on a 1/4 - 20 socket head screw (Item 3) and
coat the screw threads with Tef-Gel. Pass the screw through the base of
the blade and screw it into the nylock nut. Tighten the screw to 10 ft-lbs
(13.6 Nm). Repeat for the remaining two blades. Nylock nuts may only be
used one time; replace after each use.

If Air Breeze is to be installed on a “tilt-up” tower, mount the blade/hub
assembly to the turbine now. Coat the alternator rotor shaft threads and
blade hub bore with Tef-Gel and slide the hub onto the shaft. Start the
5/8-18 hub nut on shaft threads and “spin” the hub completely onto the
turbine alternator shaft. Fully tighten the hub to 50 ft-lbs (68 Nm) by
inserting a 5/16 inch hex key wrench in the turbine alternator shaft and
turning the shaft while turning the blades.

If Air Breeze is to be installed after the
tower is erected, it will be safer and
easier to first install the turbine body on
the tower and then install the hub/blade
assembly. This will avoid attempting to
mount the turbine while the blades are
spinning – a dangerous condition.

Snap the nosecone into position over the outside edges of the blade hub.
Make sure all three edges of the nosecone snap over the edge of the
blade hub. After installation tug on the nosecone to make sure it is secure-
ly attached.

3

1
2

4

1- blades
2- washer
3- 1/4 - 20 socket head screw
4- nylock nut

Two - Air breeze Turbine Assembly

IMPORTANT: Tef-Gel is a corrosion inhibitor and
is especially important in marine applications.

WARNINg: Don’t
attempt to mount the
turbine while blades
are spinning.

Fig. 1 Air Breeze Blade Attachment Detail.

 = Page 8 =


 Air Breeze Owner’s Manual  _x0018_

Small changes in wind speed can have a dramatic effect on power produc-
tion. The siting of your wind turbine should be carefully considered. Each
installation is different and is often a compromise among tower height, dis-
tance from the battery bank, local zoning requirements and obstacles such
as buildings and trees.

In general the higher the tower, the greater the wind speed and ultimately
power production. However, towers are expensive and can easily exceed
the cost of the turbine.

The minimum recommended tower height is 25 ft (7.6 m) on open ground
or 20 ft (6 m) above nearby obstructions. (fig. 2) Try to locate the wind
turbine in the “cleanest” turbulent free air as possible. Turbulence will
reduce the efficiency of the wind turbine and may accelerate wear on rotat-
ing components.

Safety must be the primary concern when selecting the mounting location. Install
Air Breeze so there is no possibility of accidental contact with rotating blades even
if it requires installing the wind turbine in a less than ideal location. Safety has pre-
cedence over efficiency.

Three - Air breeze Siting

WARNINg: Install Air Breeze so there is no
possibility of accidental contact with rotating
blades even if it requires installing the wind
turbine in a less than ideal location.

20 f eet

Pr evailing wind

Fig. 2 Optimal Air Breeze location.

(6 m)

 = Page 9 =


10  Air Breeze Owner’s Manual

The Air Breeze is designed to mount on tubing or pipe with a nominal
1.875 – 1.900 inch outside diameter. This dimension enables constructing
a tower from a range of readily available materials including 1 1/2 inch
Schedule 40 steel pipe and 2 inch SS-20 galvanized fence tubing (0.090
inch wall thickness). Under no circumstances should plastic pipe be used
to construct a tower.

Four - Air Breeze Towers

WARNINg: Plastic pipe should NEVER be used to construct a tower.

Fig. 3. Tower Options

29 ft (8.8 m) Tower 27 ft (8.3 m) Tower

4-1 Tower Options

Southwest Windpower offers a number of tower choices for Air Breeze.
The following section provides a summary of the available towers. User
manuals for the towers and tower kits are available online and you are
encouraged to review them in order to make the most informed
tower selection. See fig. 3.

IMPORTANT: User manuals for towers and tower kits
are available online at www.windenergy.com. Southwest
Windpower recommends reviewing them to make an
appropriate tower selection for your Air Breeze.

45 ft (13.7 m) Tower

 = Page 10 =


 Air Breeze Owner’s Manual  11

Fig. 5. 29 ft (8.8 m) Tower Kit

4x

4x

4x

x8

29'EZ TOWER KIT

x16

Fig. 4. 27 ft (8.3 m) Tower Kit

x8

27' AIR TOWER

x4

x2

4-1-1  27 ft (8.3 m) Tower Kit
(Southwest Windpower part number 1-TWA-10-01)

The 27 ft (8.3 m) Tower Kit includes a tower clamp/guy wire assembly
and all necessary hardware and fasteners to erect a 27 ft tilt-up tower
using Schedule 40 steel pipe or tubing with an outside diameter of
1.875 inch. See fig. 4.

Note: Anchors and pipe or tubing are not furnished with the kit so
you have the flexibility to use the most appropriate components
for the installation.

4-1-2  29 ft (8.8 m) Ez – Tower
(Southwest Windpower part number 1-TWA-11-01)

The 29 ft (8.8 m) EZ Tower is a complete kit that includes all materials required
to assemble a 29 ft guy wire tilt-up tower. Anchors, guy wire assemblies, galva-
nized steel tubing and all fasteners are included with the kit. See fig. 5.

 = Page 11 =


4-1-4  Marine Tower Kit
(Southwest Windpower part number 1-TWA-20-02)

              The Marine Tower Kit is specifically designed to aid mounting
              the turbine on a boat deck. Kit includes powdercoated alu-
minum mast and stays, vibration damping mounts and all necessary
marine grade hardware to install the kit. See fig. 7.

12  Air Breeze Owner’s Manual

3x

8x

45' AIR TOWER

16x

x2

Fig. 6. 45 ft (13.7 m) Tower Kit

4-1-3  45 ft (13.7 m) Tower Kit
(Southwest Windpower part number 1-TWA-10-02)

The 45 ft (13.7 m) Tower Kit includes tower clamp/guy wire assemblies and all
necessary hardware and fasteners to erect a 45 ft tilt-up tower using Schedule
40 steel pipe or tubing with an outside diameter of 1.875 inch. See fig. 6.

IMPORTANT: User manuals for towers and tower kits are available online
at www.windenergy.com. Southwest Windpower recommends reviewing them
to make an appropriate tower selection for your Air Breeze.

Fig. 7. Marine Tower Kit

Note: Anchors and pipe or tubing are not furnished with the kit so you have
the flexibility to use the most appropriate components for the installation.

 = Page 12 =


 Air Breeze Owner’s Manual  1_x0018_

Ground
Chassis

Rod
Ground

Tower Ground
Battery

Black Lead
Turbine Negative

Red Lead

Disconnect
Turbine Positive

Fuse or
Breaker

Box

Switch

User Power

Stop

Center Junction

Turbine Ground
Green Lead

Earth Ground

Battery Bank

Tower

Amp
Meter

AIR BREEZE
Wind Turbine
Generator

five - Air breeze Wiring Options

The recommended way to connect the turbine to your battery bank
is to wire the turbine directly to its own set of battery posts. This will
allow the turbine to operate independently. The Air Breeze’s internal
regulator will monitor the battery and maintain the charge as neces-
sary. figs. 9 and 10 represent typical single turbine installations.
fig. 10 includes an up-tower junction box for UL (Underwriters
Laboratory) compliance. Contact Southwest Windpower for more
information about this configuration.

TIP: Wire turbine directly to
battery bank to its own set of
battery posts.

Fig. 9. Single Turbine Installation

 = Page 13 =


1_x0018_  Air Breeze Owner’s Manual

User Power

Red Lead

Disconnect
Battery

Green Lead

Switch

Earth Ground

Stop

Turbine Ground

Amp
Meter

Black Lead
Turbine Negative

Earth Ground Battery Bank

Box

Lightning Arrestor

Turbine Positive

Junction Box

Center Junction

Up-Tower

Tower

Chassis
Ground

AIR BREEZE
Wind Turbine
Generator

Fuse or
Breaker

Fig. 10. Single Turbine Installation with Up-Tower Junction Box

fig. 10 represents a system with an Up Tower Junction Box.
The junction box may be installed close to the top of the tower
to ease installing a Lightning Arrestor or it may be mounted
close to the tower base and incorporate the stop switch.
Typically installing the box will require drilling holes in the
tower to install the box – be careful not to compromise the
tower strength.

 = Page 14 =


 Air Breeze Owner’s Manual  1_x0018_

Stop

Breaker

Wind Turbine Generator

Switch

Black Lead
Turbine Negative

Red Lead
Turbine Positive

Battery
Disconnect
Fuse or

User Power

Box
Center Junction

Turbine Ground
Green Lead

Earth Ground

Battery Bank

Tower Ground

Ground
Chassis

Rod
Ground

Disconnect
Battery

Meter
Amp

Controller
Diversion Load

Load

_x001F__x001F_ptional _x001F_

Resistive

Meter
Amp

Controller

P_x001F_ Solar Array

P_x001F_ Charge
A_x001F_ R BREE_x001F_E

Tower

Fuse or
Breaker

Fig. 11. Hybrid System with Solar Panels

5-1  hybrid System Wiring

Fig. 11 represents a typical “hybrid”
system with solar panels. Some charg-
ing sources (solar panels, fuel-powered
generators, additional wind generators,
etc.) connected to the same system
may cause interference with the Air
Breeze internal electronics and result
in pre-regulation. The interference will
not harm the turbine; it will just cause
it to spin slowly as if “braked” or it may
stop the turbine. If this occurs, test for
possible interference by disconnecting
the other charging sources to determine
the possible cause. If possible wire the
turbine and PV panels to their own set
of battery posts.

TIP: In this figure the Air Breeze
internal regulator is used. A
diversion type external regulator
could also have been used.

TIP: Voltage “pre-regulation”
may be prevented by increasing
the regulation set point. See
section 7-3-2.

 = Page 15 =


1_x0018_  Air Breeze Owner’s Manual

Switch
Stop

Battery Bank

Earth
Ground

Generator

Green Lead

Tower Ground

Turbine Ground

Black Lead

Turbine Negative

Red Lead

Turbine Positive

AIR BREEZE
Wind Turbine

Tower

Ground
Rod

Fuse
or
Breaker

Red Lead

Turbine Negative

Black Lead

Green Lead

Turbine Positive

Generator

Stop
Switch

Turbine Ground

AIR BREEZE
Wind Turbine

Tower Tower Ground

Fuse
or
Breaker Turbine Positive

Meter

Generator

Tower Ground

Stop

Green Lead

Switch

Red Lead

Turbine Ground

Amp

Black Lead

Turbine Negative

AIR BREEZE
Wind Turbine

Tower

Battery
Disconnect

Fuse
or
Breaker

Fuse
or
Breaker

Fig. 12. Multiple Air Breeze Wiring

5-2  Multiple Air breeze Wiring

Method One:

Each Air Breeze is treated
separately. Each turbine
will have
