Shurflo 9300 Solar Water Pumping Kit - 120-Feet With Pole Mount

Shurflo 9300 Solar Water Pumping Kit - 120-Feet With Pole Mount

Model: 9300wellkit1

Brand: Shurflo

Price:  $1,699.00 $1,568.95

View Additional Datasheet


Shurflo 9300 Series Solar Water Pumping Kit System up to 120 feet (With Pole Mount)


This Shurflo 9300 Series Solar Water Pumping Kit System can pump 1.68 gallons per minute at a max of 120', lower head distances will increase flow rate (see table below). It includes the top of pole mount for the solar panels. See our kits below if you don't need the pole mount.

This Kit Includes:

  • Shurflo 9300 Submersible Pump

  • Shurflo 9300 series 902-100 (LCB-O) pump controller
  • 1 x 120w 24v solar panels

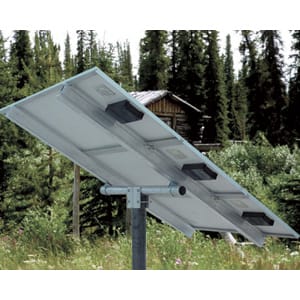

  • DPW top of pole mount.

Additional Information

Note: The 902-100 (LCB-O) pump controller must be mounted in a dry location.

For water pump cable please see the following links 10/2 without ground.  We recommend the 902-200 (LCB-G)controller for solar water pumping systems with a battery bank since a system with the 902-100 (LCB-O) would require an additional charge controller if a battery bank was required.

Other Shurflo 9300 Pre-designed Solar Water Pumping Kits



SolarLand 120w 24v Polycrystalline Off Grid Solar Panel SLP120-24U SolarLand 120w 24v Polycrystalline Off Grid Solar Panel SLP120-24U
Sun-Rac mounting kit for 1 panel
Sun-Rac mounting kit for 1 panel
Shurflo 9300 Series 24v Solar Pump Controller 902-100 (LCB-O) Shurflo 9300 Series 24v Solar Pump Controller 902-100 (LCB-O)
Shurflo 9300 Submersible Solar Water Well Pump 12 - 24 VDC 9325-043-101 Shurflo 9300 Submersible Solar Water Well Pump 12 - 24 VDC 9325-043-101
Splice Kit for Submersible Solar Water Pump Wire

Splice Kit for Submersible Solar Water Pump Wire

MC4 Solarline 2 PV Array Output Cable 15' #10 AWG

MC4 Solarline 2 PV Array Output Cable 15' #10 AWG












Array Direct Performance (24V array)
Vertical lift Minimum solar array size Flow rate (gpm) Amps @ 30V
20 2 x 32 watts 1.95 1.5
40 2 x 32 watts 1.90 1.7
60 2 x 50 watts 1.81 2.1
80 2 x 50 watts 1.76 2.4
100 2 x 50 watts 1.71 2.6
120 2 x 50 watts 1.68 2.8
140 2 x 80 watts 1.65 3.1
160 2 x 80 watts 1.63 3.3
180 2 x 80 watts 1.55 3.6
200 2 x 80 watts 1.52 3.8
230 2 x 80 watts 1.36 4.1
