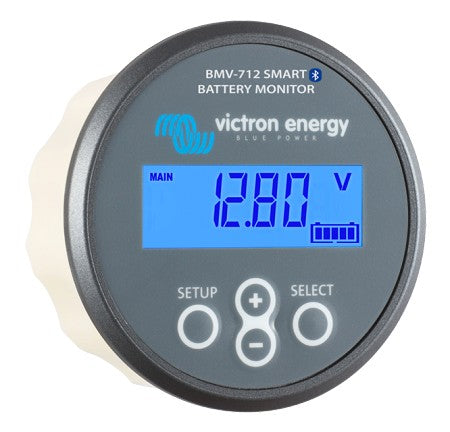

The Victron Energy BMV-712 Smart Battery Monitor is an advanced solution for precise battery management, offering real-time insights into your battery's performance. Ideal for marine, RV, and off-grid applications, it ensures your batteries operate efficiently and reliably.

Key Features:

• Integrated Bluetooth Connectivity: Monitor your battery status wirelessly via the VictronConnect app on your smartphone or tablet, simplifying system setup and enhancing performance.
• Comprehensive Battery Monitoring: Accurately measures voltage, current, power, amp-hours consumed, and state of charge, providing a complete overview of your battery's health.
• Auxiliary Input for Expanded Monitoring: Features an additional input programmable for measuring the voltage of a second battery, midpoint voltage, or battery temperature, offering versatile monitoring options.
• Programmable Relay: Includes a relay that can be configured to control other devices, such as a generator or battery protect, based on predefined parameters, enhancing automation and safety.
• High Precision and Low Power Consumption: Designed for high accuracy with minimal power draw, ensuring reliable performance without significantly impacting battery life.

Product Overview:

The BMV-712 Smart is engineered to provide detailed information about your battery system, enabling proactive management and maintenance. Its built-in Bluetooth allows for seamless integration with the VictronConnect app, facilitating easy access to real-time data and historical trends. This connectivity simplifies installation and enhances system performance by enabling wireless communication between compatible Victron Energy products.

The device's auxiliary input adds flexibility, allowing users to monitor a second battery, measure midpoint voltage in series-connected battery banks, or track battery temperature with an optional sensor. This versatility makes it suitable for complex battery setups, ensuring comprehensive oversight of your power system.

Equipped with a programmable relay, the BMV-712 Smart can automate responses to specific battery conditions, such as starting a generator when battery voltage drops below a certain threshold. This feature enhances system automation and can prevent battery damage by ensuring timely interventions.

The monitor's high precision in tracking amp-hours consumed and state of charge allows users to make informed decisions about energy usage and battery maintenance. Its low power consumption ensures that monitoring your system does not become a significant drain on your battery resources.

Specifications:

Parameter	Value
Supply Voltage Range	6.5 – 70 VDC
Current Draw (Backlight Off)	< 1 mA
Input Voltage Range (Auxiliary)	6.5 – 70 VDC
Battery Capacity Range	1 – 9999 Ah
Operating Temperature Range	-40 to +50°C
Dimensions (H x W x D)	63 x 63 x 31 mm
Mounting Hole Diameter	52 mm
Front Panel Thickness	4 mm
Shunt Dimensions (H x W x D)	46 x 120 x 54 mm
Shunt Current Rating	500 A / 50 mV
