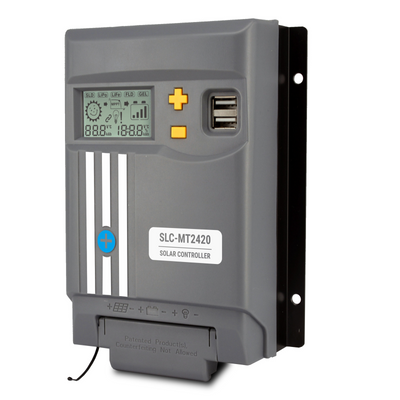

SLD Tech (Solarland) SLC-MT2420 12/24V MPPT Auto-Switch Solar Charge Controller
The SLD Tech SLC-MT2420 is a state-of-the-art MPPT solar charge controller designed to optimize your solar energy system. With advanced technology, user-friendly features, and comprehensive protection mechanisms, this controller ensures efficient energy management and long-lasting performance for residential, commercial, and industrial solar setups.
Key Features
- Advanced MPPT Technology: Delivers 15%–20% higher efficiency compared to PWM controllers by dynamically tracking the solar panels' maximum power point.
- Automatic Voltage Recognition: Detects and adjusts automatically to 12V or 24V systems for seamless integration across various applications.
- High Conversion Efficiency: Features up to 97% charging efficiency and up to 99.9% MPPT tracking efficiency, ensuring minimal energy loss.
- Comprehensive Safety Features: Includes safeguards against overcharging, over-discharging, overloads, overheating, and reverse polarity for reliable operation.
- User-Friendly Interface: Equipped with an intuitive LED display and control buttons for easy monitoring and configuration of system parameters.
- Versatile Load Control Modes: Offers manual, light control, and time control modes to meet diverse application requirements.
Product Overview
The SLD Tech SLC-MT2420 is engineered for maximum efficiency and flexibility in solar energy systems. Utilizing advanced MPPT (Maximum Power Point Tracking) technology, the controller optimizes the energy output of solar panels by continuously adjusting the load to capture the highest possible power. This results in faster and more effective battery charging, even under changing sunlight conditions.
Compatible with both 12V and 24V battery systems, the SLC-MT2420 simplifies setup by automatically recognizing system voltage. Its robust design supports a wide range of solar panel configurations and ensures reliable performance in demanding conditions.
Safety is a core feature of this controller, with integrated protection mechanisms to guard against system failures and extend the lifespan of batteries and other connected equipment. The user-friendly LED interface provides real-time updates on system performance and allows easy customization of charging and discharging parameters.
With its versatile load control modes, the SLC-MT2420 adapts to a variety of applications, including residential solar systems, industrial installations, and remote off-grid setups.
Applications
- Residential Solar Systems: Efficiently manage energy storage for home solar setups.
- Industrial and Commercial Applications: Reliable solar energy control for large-scale systems.
- Off-Grid Systems: Ideal for cabins, RVs, and remote monitoring stations.
- Street Lighting and Traffic Systems: Supports solar-powered lighting and signage.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SLC-MT2420 |
| Battery Voltage | 12V / 24V Auto Recognition |
| Rated Charging Current | 20A |
| Rated Discharging Current | 20A |
| Maximum Solar Panel Power | 260W (12V system) / 520W (24V system) |
| Maximum Solar Panel Voltage | 150V |
| Charging Efficiency | Up to 97% |
| MPPT Tracking Efficiency | Up to 99.9% |
| No-Load Loss | < 0.7W |
| Temperature Compensation | -3mV/°C/cell |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 0–100% (non-condensing) |
| Ingress Protection | IP32 |
| Dimensions (L × W × H) | 180.7 × 115 × 72 mm |
| Weight | 1.18 kg |
Why Choose SLD Tech SLC-MT2420?
The SLD Tech SLC-MT2420 stands out for its advanced MPPT technology, exceptional efficiency, and robust safety features. Whether you're managing a residential solar system or powering a remote industrial application, this controller ensures maximum energy harvest and reliable system performance.
