Description
Key Features
-
High-Power Bifacial Design: Harvest up to 25 % extra energy from the rear side, significantly enhancing overall energy yield.
-
Top-Tier Cell Technology: Built with N‑Type monocrystalline half-cut cells, 16 busbars (16BB), and TOPCon architecture for superior performance and efficiency.
-
Robust Mechanical Durability: Withstands 5400 Pa front load and 2400 Pa rear load, ideal for harsh weather and heavy snow.
-
Exceptional Warranty & Lifespan: Backed by a 12-year product warranty and 30-year linear power warranty—with only 0.4 % annual degradation.
-
High Efficiency, Low Degradation: Delivers around 22.4 % module efficiency, ensuring strong energy output and long-term cost savings.
Product Description

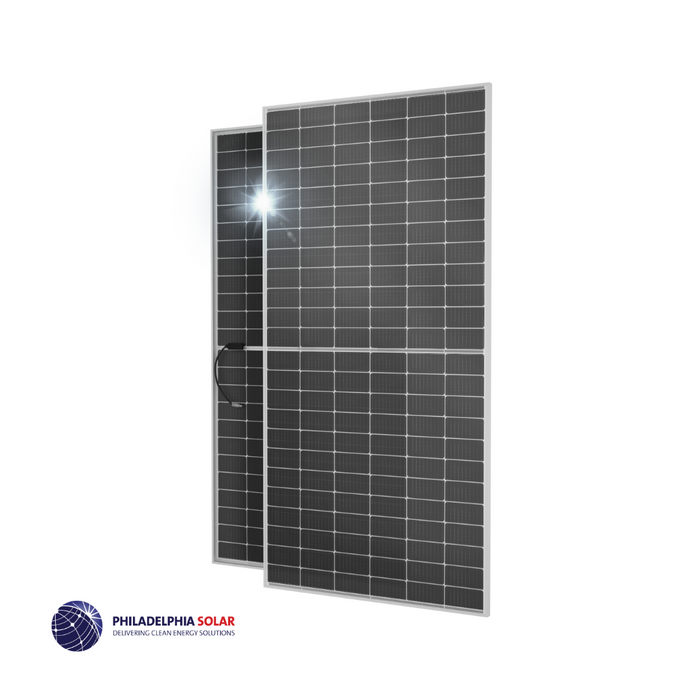

Driven by innovation and engineered for performance, the Philadelphia Solar Nexus PS‑MNB144(HCBF)‑580W is a cutting-edge bifacial panel designed for residential, commercial, and utility-scale solar systems. Its N‑Type monocrystalline cells, half-cut and TOPCon-enhanced, provide exceptional electrical performance, lower temperature sensitivity, and reduced power degradation. The bifacial design captures reflected light from the rear, increasing output and lowering the levelized cost of energy (LCOE) over the system lifespan.
Built to endure, its rigid frame and reinforced construction handle extreme loading while maintaining panel integrity. The module offers peace of mind through robust warranties: 12 years for parts and workmanship, and 30 years for power output—guaranteeing 87.4% power retention at year 30.
| Use Case | Benefits |
|---|---|
| Utility-Scale Projects | High-wattage and bifacial gain reduce footprint and maximize production. |
| Commercial Rooftops | Efficient panels translate to fewer units needed per kW. |
| Off-Grid Systems | Durable and reliable—ideal for remote and demanding installations. |
| Residential Arrays | High efficiency and sleek design improve aesthetics and performance. |
Philadelphia Solar, one of the leading PV module manufacturers, leverages state-of-the-art automated production lines and global certifications to ensure reliability and quality.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number / ID | PS‑MNB144(HCBF)‑580W |
| Max Power (Pmax) | 580 Wp |
| Module Efficiency | 22.4 % |
| Voltage at Pmax (Vmp) | 43.6 V (approx.) |
| Current at Pmax (Imp) | 13.3 A |
| Open‑Circuit Voltage (Voc) | 51.65 V |
| Short‑Circuit Current (Isc) | 14.1 A |
| Cell Configuration | 144 half-cut N‑Type monocrystalline cells |
| Bifacial Gain | Up to 25 % additional rear-side energy |
| Mechanical Load | 5400 Pa front / 2400 Pa rear |
| Dimensions (L × W × H) | 89.65 × 44.6 × 1.38 in (2277 × 1133 × 35 mm) |
| Weight | 63.9 lbs (29 kg) |
| Warranty | 12-year product, 30-year linear (87.4% at year 30) |
| Annual Degradation | ≤ 0.4 % per year |
