MIDNITE SURGE PROTECTOR DEVICE 0-300VAC 300VAC

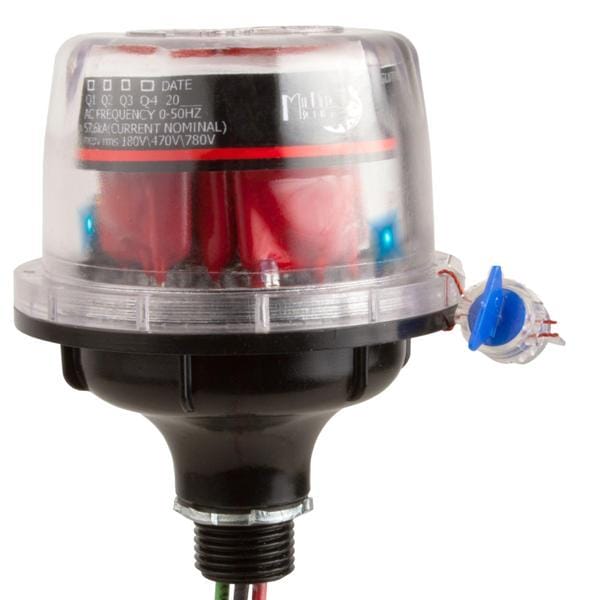

The MidNite Solar Surge Protector (MNSPD) is a Type 2 device. It is designed for both AC and DC systems and provides protection to service panels, load centers or where the SPD is directly connected to the electronic device requiring protection. Maximum protection will only be achieved if the SPD is properly installed. The MidNite Solar SPD is offered in three different voltages to maximize the required protection level. Protection is achieved by reducing the clamping voltage to a safe voltage that your system can sustain without damaging any electronics in the system. The MidNite Solar SPD voltage rating should be chosen according to the nominal voltage of the system. Response time is 8/20µs to clamp 128,000 amps. There are two LED's in each unit that will indicate when the unit is functioning correctly and there is voltage to it.
