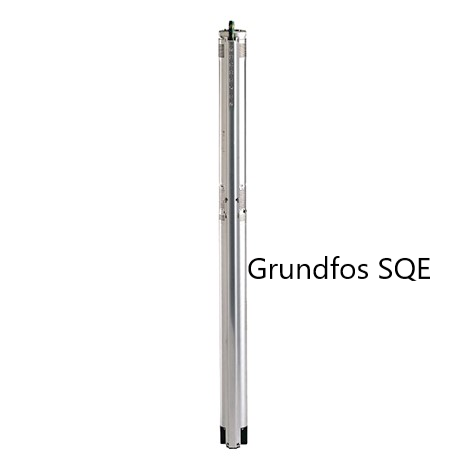

The Grundfos SQ Series Well Pump is a high-performance, compact, and durable pump designed to meet the demands of residential water systems and small-scale irrigation applications. Engineered with advanced technology and premium materials, it ensures reliable and efficient operation for deep-well installations and demanding environments.

Key Features:

• High Efficiency: Equipped with a permanent magnet motor, the pump ensures optimal performance with reduced energy consumption.
• Soft Start Technology: Minimizes electrical disturbances and mechanical stress, extending the pump's lifespan.
• Dry-Running Protection: Automatically halts operation when water levels are insufficient, preventing damage.
• Robust Construction: Crafted from stainless steel and durable composite materials for enhanced longevity.

The Grundfos SQ Series 3" Submersible Well Pump is engineered to deliver reliable water supply solutions for residential and small-scale irrigation needs. With a flow rate of 10 gallons per minute and a 3/4 horsepower motor, this pump is adept at handling depths up to 200 feet, making it ideal for deep well applications.

One of the standout features of this pump is its permanent magnet motor, which offers high efficiency and consistent performance. The soft start functionality reduces the starting current, leading to smoother operation and less wear on the system components. Additionally, the built-in dry-running protection safeguards the pump by automatically stopping it when water levels are too low, thereby preventing potential damage.

Constructed with a combination of stainless steel and high-quality composite materials, the Grundfos SQ Series pump is designed for durability and longevity. Its compact 3-inch diameter allows for installation in narrow boreholes, providing flexibility in various setups. The pump also features overvoltage and undervoltage protection, ensuring stable operation even with fluctuating power supplies.

Whether you're looking to supply water to your home or manage a small irrigation system, the Grundfos SQ Series 3" Submersible Well Pump offers a dependable and efficient solution. Its advanced features and robust construction make it a valuable addition to any water supply system.

Specification	Details
Flow Rate	10 GPM
Horsepower	3/4 HP
Voltage	200-240 VAC
Maximum Head	200 feet
Minimum Water Depth	6 inches
Pump Diameter	3 inches
Discharge Size	1-1/4 inch NPT
Motor Type	Permanent Magnet, 2-Wire
Built-in Protections	Dry-running, Over/Undervoltage, Thermal Overload
Construction Materials	Stainless Steel (housing, shaft), Composite (impellers, bearing)
Weight	Approx. 13 lbs
Maximum Submersion Depth	500 feet
Operating Temperature Range	32°F to 104°F (0°C to 40°C)
Start-up Current	Reduced with soft start functionality
Cable Requirements	12-gauge, 2-wire with ground
Noise Level	Quiet operation (<50 dB)
Warranty	2 Years
