Description

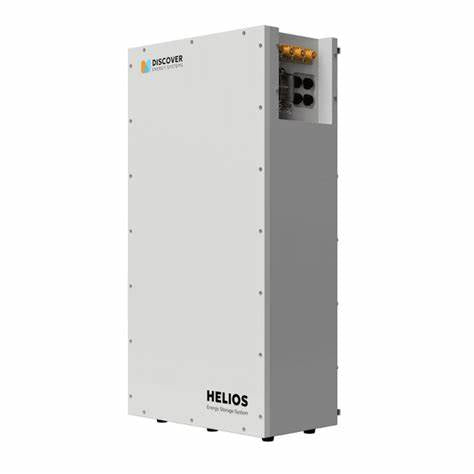

The HELIOS Series is a utility-grade, outdoor-rated LiFePO₄ battery engineered for whole-home backup, microgrids, and C&I retrofits that demand high usable energy with fast, clean installation. A sealed, weatherproof cabinet houses a 51.2 V, 314 Ah pack with an advanced BMS and front-service layout, so it can live outdoors beside the inverter without a separate battery room.
Designed for closed-loop communication with leading hybrid inverters, HELIOS delivers stable voltage, high round-trip efficiency, and stout surge handling for motor starts and clustered loads. The architecture supports straightforward parallel expansion via a high-current internal bus, making multi-battery scaling simple.
For installers, the cabinet provides clear cable landings, front HMI, integrated disconnects, and labeled comms ports to shorten commissioning and keep inspections tidy. For owners, cobalt-free LFP chemistry and rigorous safety testing translate into long life, dependable performance, and low maintenance.
Product Details
-

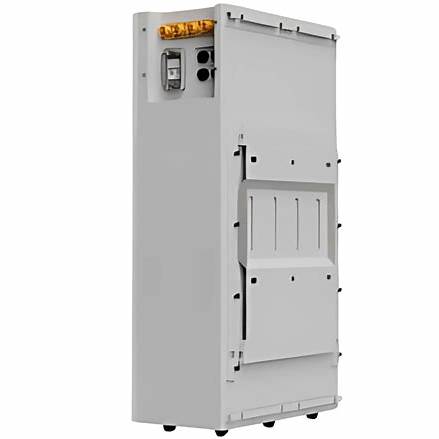

Outdoor IP65 cabinet: Weather-resistant, wall-mount enclosure with front access to breaker, terminations, and communications.
-
High power & longevity: Around 10 kW continuous output with short-term peak capability; designed for daily cycling and backup.
-
Smart BMS & closed-loop comms: CAN/RS-485 integrations provide accurate SOC, charge limits, and protections with supported inverters.
-
Scalable backbone: Internal high-current parallel bus supports multi-battery stacks for larger autonomy windows.
-
Installer-friendly: Clear labeling, commissioning prompts, and documented inverter settings reduce startup time and callbacks.
Technical Specifications
| Category | Specification |
|---|---|
| Usable energy | 16.1 kWh (≈16,080 Wh) |
| Nominal voltage / capacity | 51.2 V / 314 Ah |
| Chemistry | LiFePO₄ (LFP), cobalt-free |
| Continuous / peak power | ~10 kW continuous; higher short-duration peak (model curve) |
| Charge voltage (bulk/absorb) | ~55.2–56.8 V |
| Float voltage | ~53.6 V |
| Recommended LVD (system) | ~48 V |
| BMS protections | Over/under-voltage, over-current, temperature, cell balancing |
| Communications | CAN / RS-485 (closed-loop with supported inverters) |
| Parallel capability | Internal high-current bus; multi-module stacks supported |
| Enclosure rating | IP65 / NEMA 3R outdoor |
| Certifications (reference) | UL 1973, UL 9540A, UN38.3 (series-level safety testing) |
| Mounting | Wall-mount outdoor cabinet; front service access |
| Typical dimensions / weight | Tall wall cabinet form factor; see datasheet drawing for exact values |
