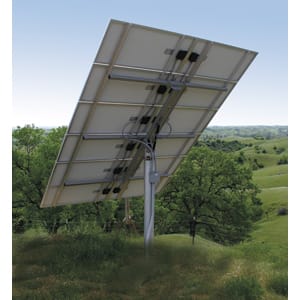

Solar Rackworks Top of Pole Mounts
Solar Rackworks TPM standard mounts have heavy steel mounting sleeves, elevation pivots and strongbacks that are painted with durable outdoor paint. The module rails are 6061-T6 mill-finish structural aluminum angle. Stainless steel module mounting hardware is provided. Standard top-of-pole mounts are adjustable from 15 degrees to 65 degrees in 10-degree increments and fit on schedule-40 steel pipe. (A pole size in the table below that has /80” after its size requires schedule-80 pipe; all others are schedule-40.)
For harsh environments, these mounts are available with hot-dip-galvanized steel and anodized aluminum. Multiply price by 1.8 for this addition. Call for additional pricing for powder-coated mounts and stainless steel hardware.
Mounts are categorized by size of module for example the Type G modules are the most common usually around 250w with dimensions ranging from 37-42 x 61-67 . If you need any help selecting the correct mount please call us.
PLEASE NOTE MOUNTS ARE MADE TO ORDER TO FIT THE SOLAR MODULE SPECIFIED.
PLEASE ALLOW 2-3 WEEKS FOR DELIVERY.
